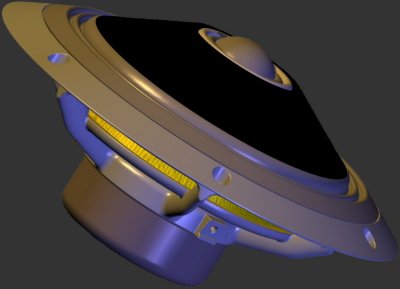

The point source for your musical application, designed and manufactured without compromises:



Tweeters don't like prefixed, swinging horns and answer this with a nonlinear frequency response and a early decrease to the high frequencies - notably under listening angle.

They don't even like to be placed at the side of their big brother, showing various nonlinear frequency resonses under variuos listening angles.

The consequent solution to all this problems is the  inverted woofer cone. Hard to handle in construction and manufacturing of the driver itself, but therefore just easy to handle in loudspeaker construction.

This unit, constructed and manufactured perfectly to this mission, will be the heart of your next loudspeaker.







Availablability expected 1. quarter of 2018.



Preliminary parameters (Prototype):



Woofer:

SD:

about 135 cm³, 18cm, 7"



fs:

fs about 33 Hz



Qts:

Qts about 0,33



VAS:

VAS about 30 l



X lin:

X lin: +/- 6,0 mm



X max:

X max: +/- 11,0 mm



Korb:

Aluminium die cast, flow optimized



Cone:

Sandwich



Surround:

Multiwave rubber, flow optimized



Motor:

Double Neodymium, Underhung, CCAW on fiber carrier







  Tweeter:

SD:

about 7,0 cm² (VC 28,0 mm)



fs:

fs about 770 Hz









Housing:

Die cast aluminium



Dome:

Cloth



Motor:

Double Neodymium, Underhung, CCAW on aluminium  carrier



Ferrofluid:

No



Damping:

Felt, cotton wool



Volume:

Various ventilation openings



Mounting:

Screwed on woofer motor







Common specs:



Diameter total 190 mm / 7,5"





Gold plated screw on terminals for woofer and tweeter





Suitable enclosures: From 8 l / 0.28 ft³ closed to 25 l / 0,9 ft³ reflex





Frequency response (depends on enclosure): 30-30.000 Hz





Further informations coming soon on this site               underconstruction1.gif
